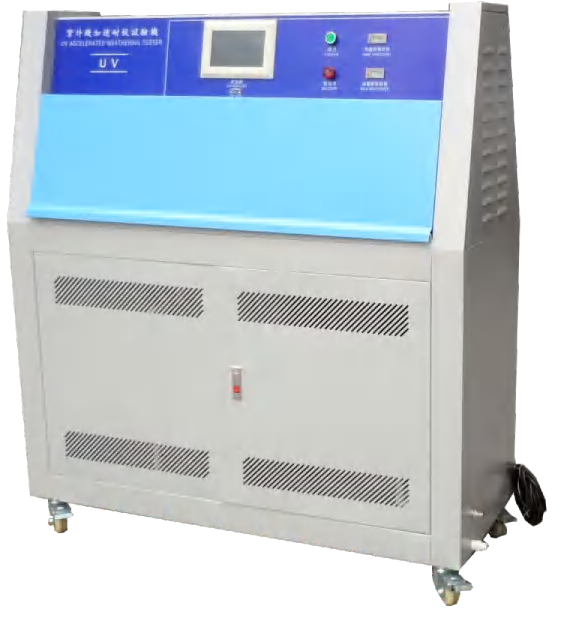

UV Aging Test Chamber

Product Introduction

1. Purpose & Industry Significance

The UV Aging Test Chamber is a cornerstone for industries like coatings, plastics, textiles, and automotive. It simulates UV - driven environmental damages (e.g., color loss, brittleness, scaling) by combining fluorescent UV lamps (mimicking sunlight’s UV spectrum) with controlled temperature/humidity. This recreates real - world stressors: high temps, humidity, condensation, and dark cycles. From R&D (developing UV - resistant formulas) to QC (verifying product compliance), it empowers businesses to pre - empt material failure, save costs, and innovate durably.

2. Core Simulation Technology

• UV Lamps: Specialized tubes emit 280–400nm UV (peaks at 313/340/365nm, customizable). These wavelengths target the “UV damage zone” — where sunlight weakens materials. With 8×40W lamps (2 rows), they deliver consistent, lab - grade radiation.




• Thermal & Humid Control: Exposure temp: 50–70℃±2℃ (blackboard standard) mimics sun - baked conditions. Condensation temp: 50℃±2℃ (humidifier) recreates nighttime dew, a key driver of moisture - related degradation. Together, they accelerate aging while maintaining test repeatability.




3. Structural & Material Excellence

• Chamber Build: Crafted via CNC from 1.2mm 304 SUS stainless steel (corrosion - resistant, vital for humid test environments) and aluminum - alloy frames (lightweight yet sturdy).




• Air Circulation: A single - loop system with imported axial fans ensures even air flow. This eliminates hot/cold spots, so every test sample faces uniform conditions — critical for accurate, comparable results.




4. Intelligent Operation & Flexibility

• Automation: A programmable controller runs test cycles (timing, temp/humidity ramps) autonomously. No manual oversight means fewer errors, faster workflows, and 24/7 unattended testing.




• Customization: Chamber dimensions and specs adapt to unique needs (e.g., larger batches, niche material types). The 48 - sample capacity boosts throughput, cutting time-to - market for new products.




5. Compliance & Reliability

• Standards Adherence: Meets ASTM G154 (global UV testing benchmark), GB/T16422.3 (Chinese coating standard), and GB/T14522 (material weathering). Results are globally recognized, vital for exports/regulatory compliance.




• Component Quality: Core electrics (fans, controllers) use top - tier international brands. Lamps last long with stable output, reducing replacement costs. Stainless - steel interiors resist corrosion, lowering maintenance.




6. Real - World Impact: From Lab to Market

For a coating maker, it reveals if a new formula resists chalking. For a textile firm, it tests dye lightfastness. In R&D, it shortens trial - and - error cycles — what once took months outdoors now takes days indoors. By identifying weaknesses early, businesses avoid costly recalls, refine formulas, and launch superior products.

7. Cost - Efficiency & Sustainability

• Low Ops Cost: Durable materials (stainless steel, alloy) and energy - efficient design (6KW total power) cut long - term expenses. Automated operation reduces labor.




• In - House Testing: Skip expensive third - party labs. Test prototypes internally, iterate faster, and maintain confidentiality.




8. Future-Readiness

As climates shift and regulations tighten, the chamber evolves. Customizable features let it adapt to new UV - resistant materials or updated testing protocols. Its modular design allows easy upgrades, ensuring it stays relevant as your industry innovates.

In short, the UV Aging Test Chamber is not just equipment — it’s a strategic asset. By merging scientific precision, industrial durability, and user - friendly automation, it empowers businesses to master material durability, innovate boldly, and lead in competitive markets.
