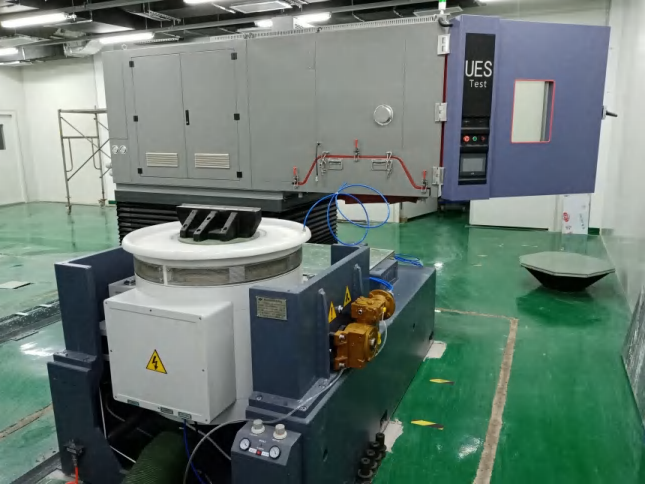

Temperature Humidity and Vibration Three- in-One Test Chamber
This temperature humidity and vibration three - in - one test chamber stands at the forefront of environmental simulation. It can apply thermal, humidity, and vibration stresses simultaneously, accurately recreating extreme working conditions. With a wide temperature range (-70℃ to 180℃), precise humidity control (10 - 98%RH), and flexible capacity (225L - 1000L), it meets diverse testing needs. The air - cooling and water - cooling options adapt to different scenarios, while expandable composite factors like light and rain enable full - scale real - world simulations for R & D and lifespan assessment in electronics, automotive, etc.
Comprehensive Product Introduction: Temperature, Humidity, and Vibration Three-in-One Test Chamber
1. Product Overview
The Temperature, Humidity, and Vibration Three-in-One Test Chamber represents cutting-edge technology in environmental testing equipment. This integrated system combines three critical testing modalities to provide comprehensive reliability validation for products across various industries. Designed to meet rigorous international standards, it enables simultaneous application of thermal, humidity, and vibration stresses, replicating real-world environmental conditions with remarkable accuracy.
2. Technical Specifications
Temperature Performance:
Operating Range: -70°C to +180°C
Rate of Change: 5°C/min to 20°C/min (selectable)
Uniformity: ±2°C
Stability: ±0.5°C
Humidity Performance:
Range: 10% to 98% RH
Deviation: ±2.5% RH
Stability: ±2% RH
Vibration Performance:
Frequency Range: 5-2000 Hz
Maximum Acceleration: 100 g
Vibration Table: Electrodynamic type
Control System: Digital feedback control
3. Key Features
Advanced Control System:
The chamber incorporates a sophisticated PLC-based control system with touch-screen interface, allowing precise programming of complex test profiles. The system supports multiple pattern storage and real-time monitoring of all parameters.
Safety Mechanisms:
Over-temperature protection
Current leakage detection
Emergency stop function
Password-protected operation
Construction Quality:
Interior: SUS304 stainless steel
Insulation: High-density polyurethane foam
Sealing: Double-layer silicone rubber gaskets
4. Applications
Automotive Industry:
ECU and sensor testing
Component reliability validation
Supplier quality assurance
Electronics Manufacturing:
PCB stress screening
Connector reliability testing
Consumer electronics validation
Aerospace and Defense:
Avionics testing
Military equipment qualification
Satellite component validation
5. Model Specifications
Model | Internal Volume | Temperature Range | Humidity Range | Vibration System |
|---|---|---|---|---|
UTHV-225 | 225L | -70°C ~ +180°C | 10% ~ 98% RH | 5-2000 Hz |
UTHV-408 | 408L | -70°C ~ +180°C | 10% ~ 98% RH | 5-2000 Hz |
UTHV-612 | 612L | -70°C ~ +180°C | 10% ~ 98% RH | 5-2000 Hz |
UTHV-800 | 800L | -70°C ~ +180°C | 10% ~ 98% RH | 5-2000 Hz |
UTHV-1000 | 1000L | -70°C ~ +180°C | 10% ~ 98% RH | 5-2000 Hz |
6. Installation Requirements
Power Supply:
3-phase, 380V ±10%, 50/60 Hz
Maximum power consumption: 15 kVA
Environmental Conditions:
Ambient temperature: +5°C to +35°C
Relative humidity: ≤85% RH
Avoid direct sunlight and heat sources
Space Requirements:
Minimum clearance: 50 cm from walls
Adequate ventilation space
Level installation surface
7. Quality Assurance
All chambers undergo rigorous factory testing and calibration. Each unit is supplied with comprehensive documentation including:
Certificate of calibration
Operation manual
Maintenance guide
CE certification
8. Technical Support
We provide:
24-month warranty
On-site installation
Operator training
Lifetime technical support
Spare parts availability
Google Search Keywords
Temperature Humidity Vibration Test Chamber
Three-in-One Environmental Test Equipment
Combined Environmental Stress Testing
Thermal Shock Vibration Chamber
Climate and Vibration Test System
ESS Testing Equipment
Composite Environmental Chamber
Reliability Testing Equipment
This comprehensive testing solution enables manufacturers to accelerate product development, improve quality, and ensure compliance with international standards. Its robust design and advanced features make it an ideal choice for research institutions, quality control laboratories, and manufacturing facilities worldwide.
