SiMMIR Industrial Safety Vision Protection System
SiMMIR utilizes edge AI vision technology to deliver real-time hazard detection in industrial settings, achieving 99.9% accuracy in human-object differentiation with response times under 80ms. It supports multi-zone management, integrates with industrial protocols (e.g., Modbus TCP), and is deployed in 1000+ cases across automotive, 3C electronics, and semiconductor industries. The system offers rapid deployment, high reliability with self-diagnosis, and compliance with safety standards like CE and ISO.
Product Details
The SiMMIR Industrial Safety Vision Protection System is a cutting-edge solution designed to address the critical need for workplace safety in automated industrial environments. With the rise of robotics and machinery, traditional safe protection system like light curtains and laser scanners often fall short due to limitations in flexibility, accuracy, and adaptability. SiMMIR overcomes these challenges by combining edge computing, AI vision algorithms, and a proprietary hardware-software architecture, enabling proactive safety monitoring that prevents accidents caused by human-machine interactions.
Technology Overview

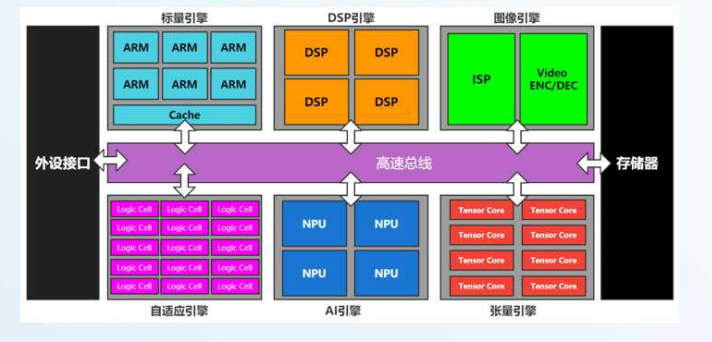

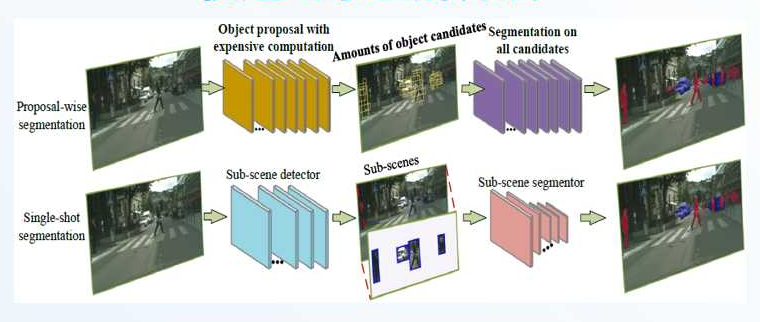

At its core, SiMMIR employs advanced AI models trained on vast industrial datasets to achieve up to 99.9% recognition accuracy. The system processes video streams locally via edge devices, reducing latency to below 80ms—significantly faster than server-based solutions. Key innovations include:

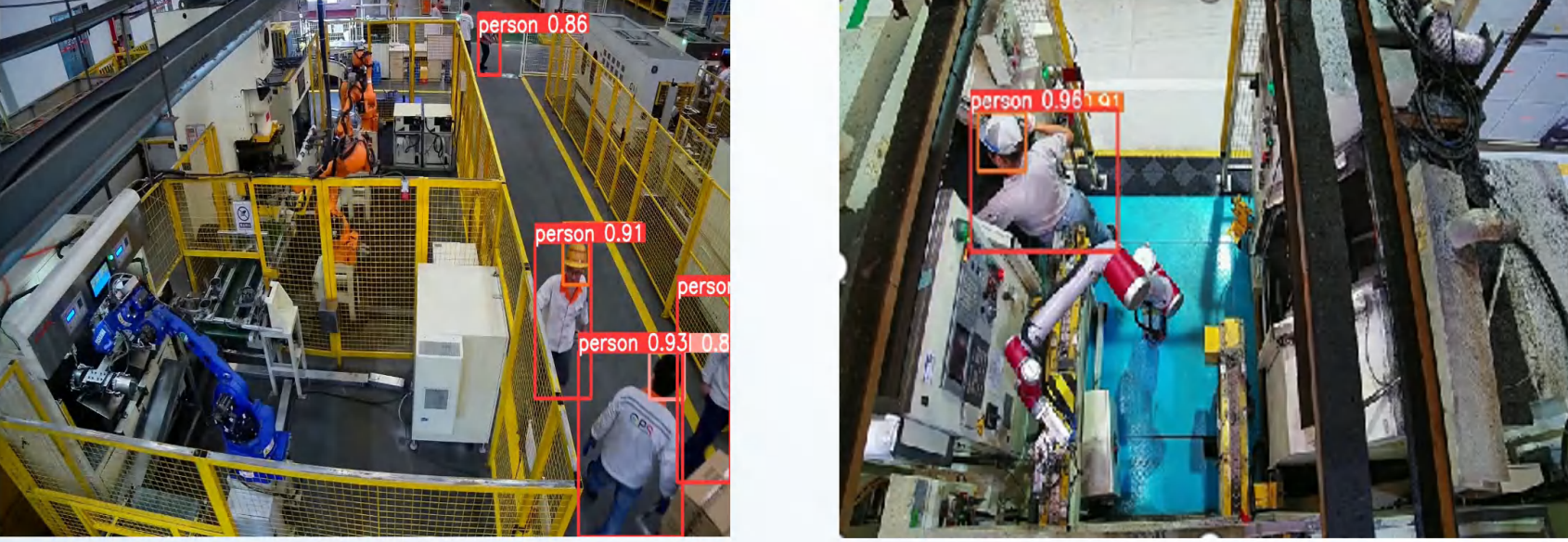

Human-Object Separation: Distinguishes between personnel and equipment (e.g., AGVs, robots) to minimize false alarms.

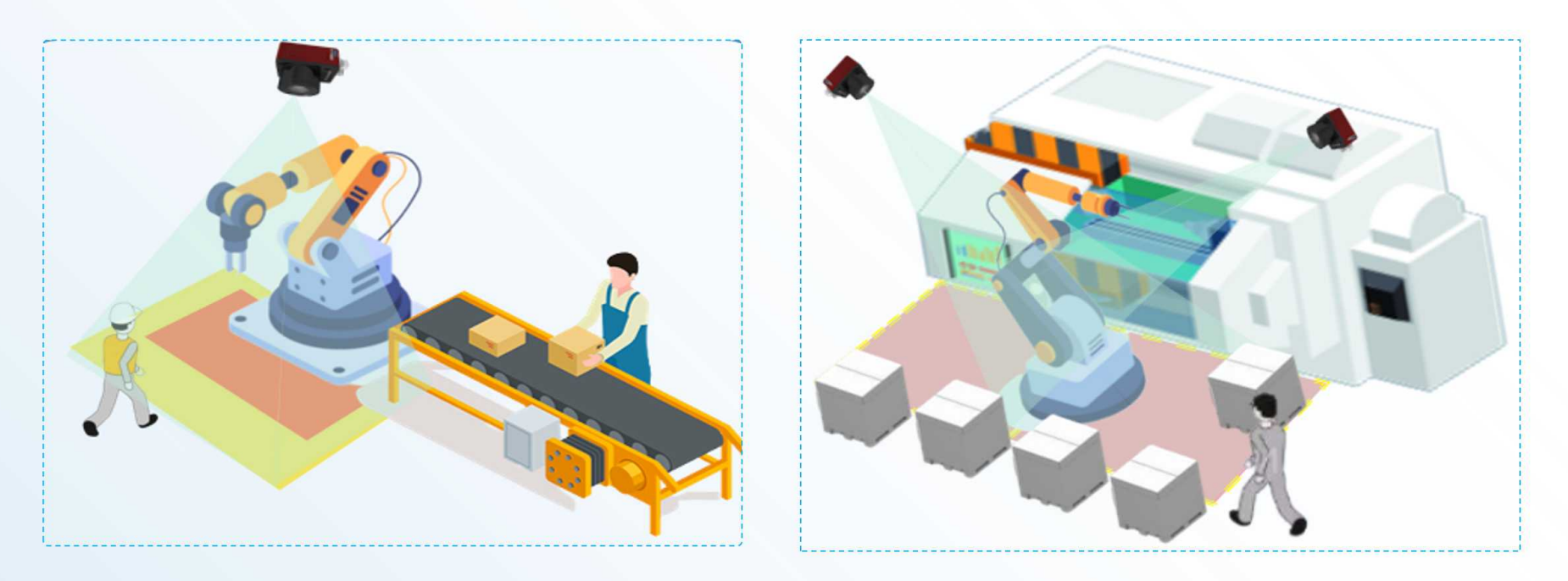

Dynamic Zone Control: Allows customized safety logic for multiple areas, such as warning zones and restricted zones.
Industrial Integration: Supports protocols like Ethernet/IP and PLC communications for seamless device reaction.

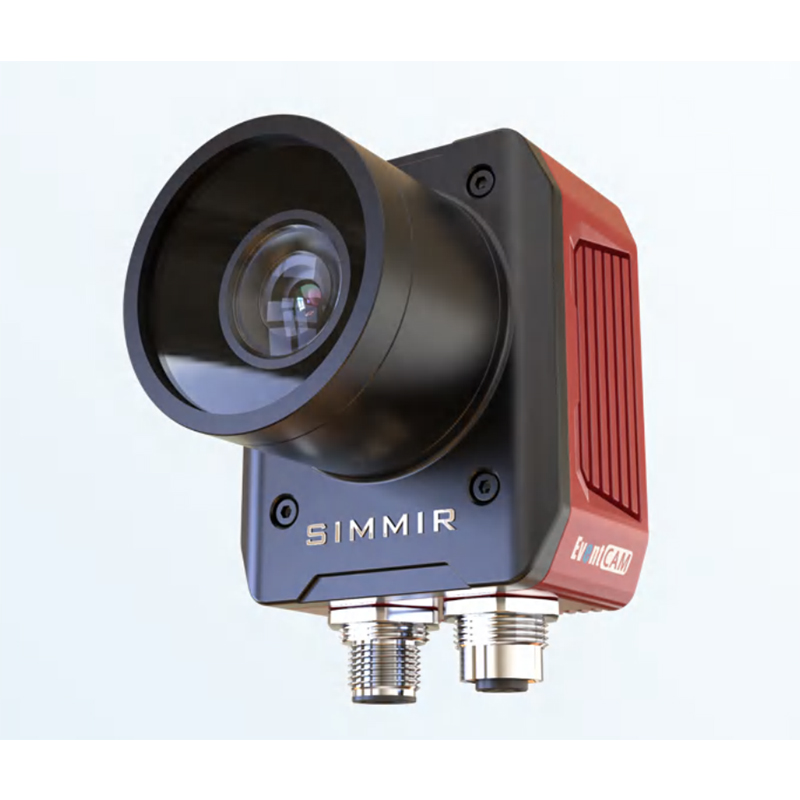

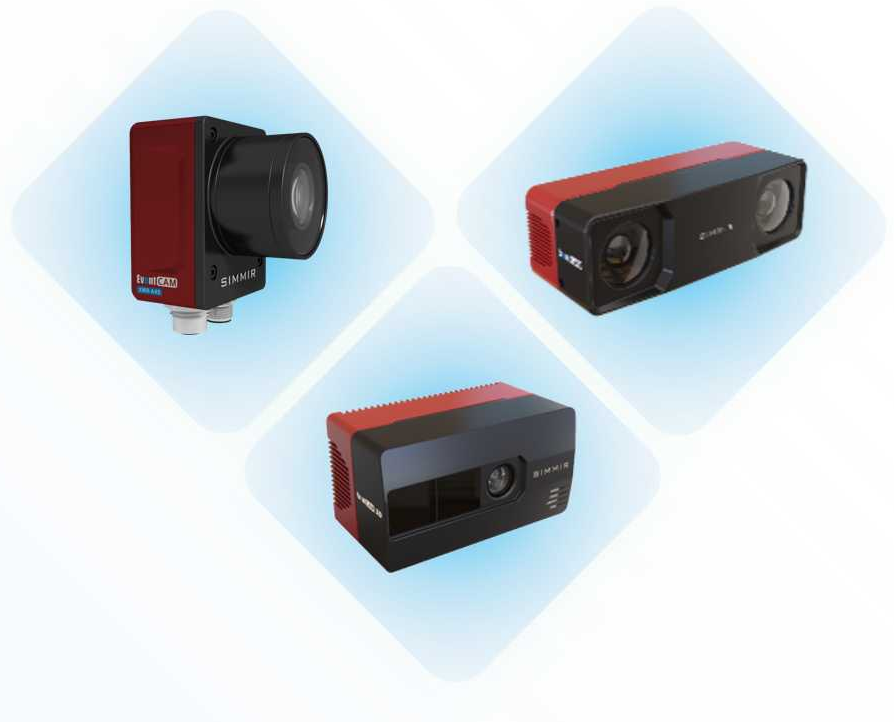

The product lineup includes AI cameras like the XMR series, which feature high resolution (e.g., 8.3 megapixels), robust construction (IP65 rating, -20°C to 45°C operating range), and options for low-light or high-frame-rate applications.
Applications and Case Studies
SiMMIR has been successfully deployed across diverse industries. In automotive manufacturing, it safeguards workers in robotic zones; for instance, at a foreign new energy vehicle plant, the system detects personnel滞留 in die-casting stations and triggers machine shutdowns, preventing accidents.
In 3C electronics, it monitors assembly lines for intrusions, while in food packaging, it ensures safety around automated machinery. Another case involves a tire production facility, where SiMMIR covers large, occluded areas to detect stay workers, outperforming radar-based solutions. These implementations highlight the system’s versatility, with capabilities like video recording for incident Trace back and multi-level alerts.
Advantages Over Traditional Methods
Compared to conventional protection, SiMMIR offers superior flexibility:

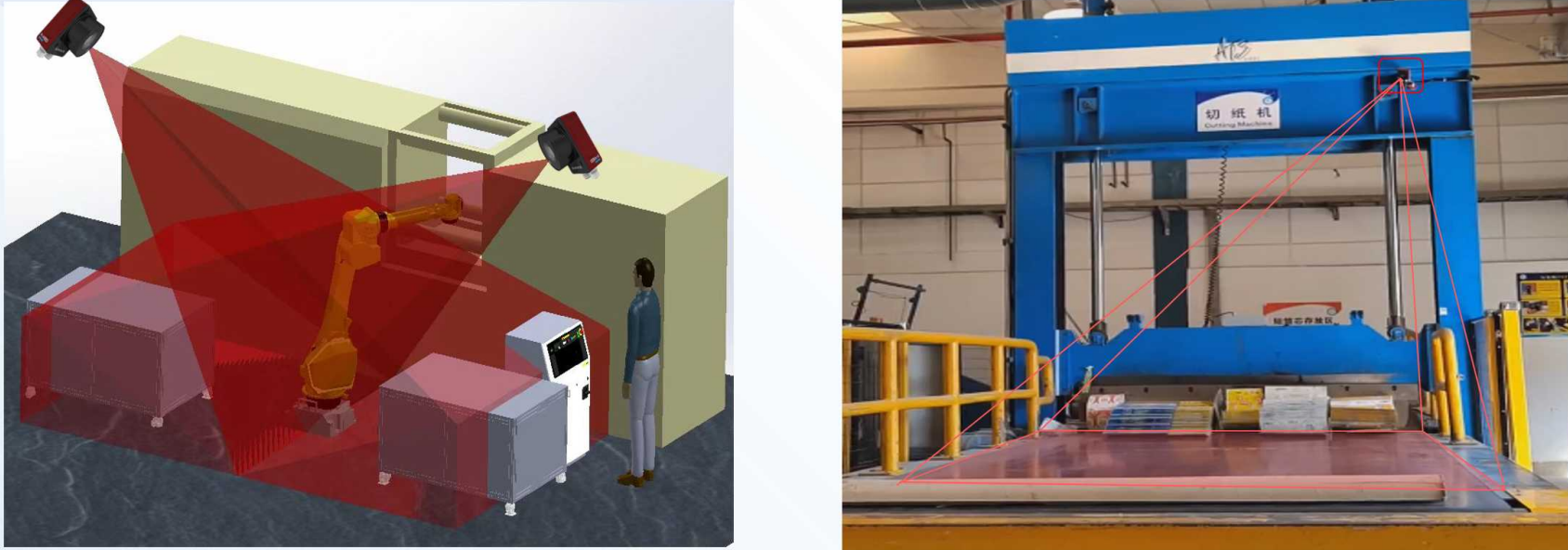

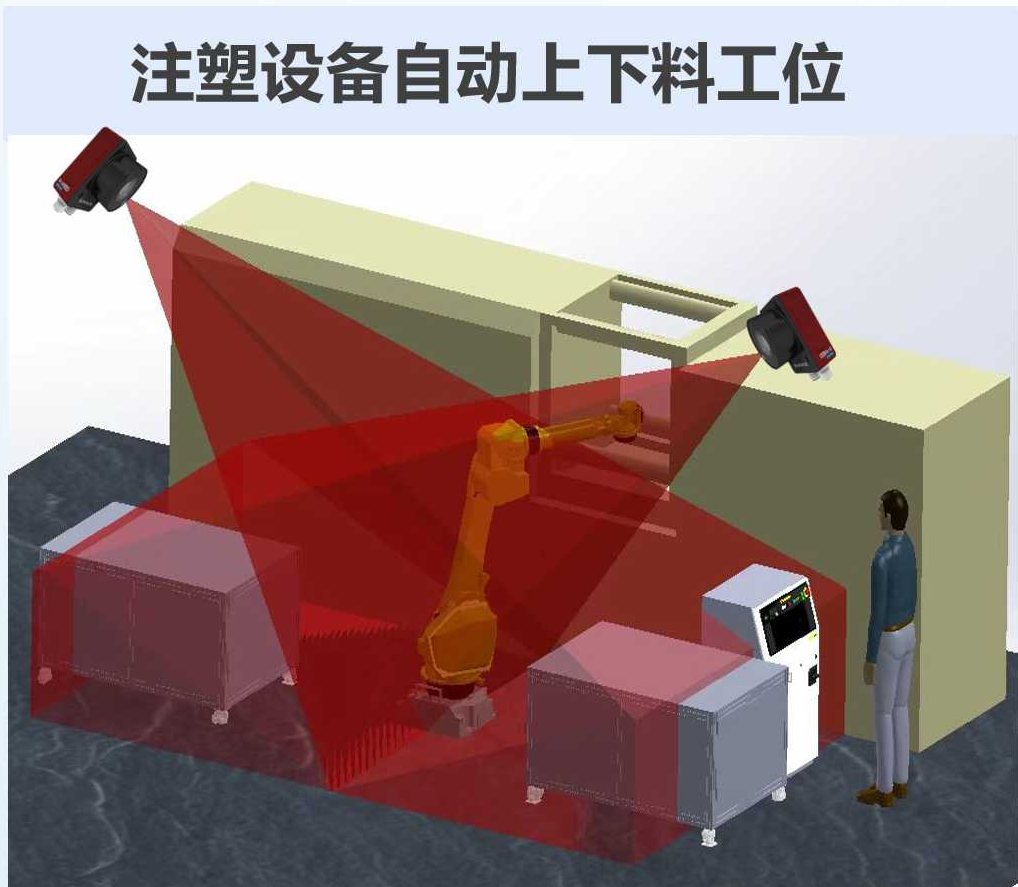

It adapts to complex, non-rectangular zones and 3D spaces, unlike rigid light curtains.
The AI-driven approach reduces false alarms by 70% and enables predictive analytics.
With edge computing, it avoids cloud delays and maintains operation offline.
Certifications like CE and ongoing ISO functional safety compliance further ensure reliability.
Conclusion
By integrating AI vision with industrial workflows, SiMMIR not only enhances safety but also boosts productivity through minimal downtime. Its scalability and user-friendly deployment make it ideal for modern smart factories, helping companies avoid costly accidents, fines, and operational disruptions.
