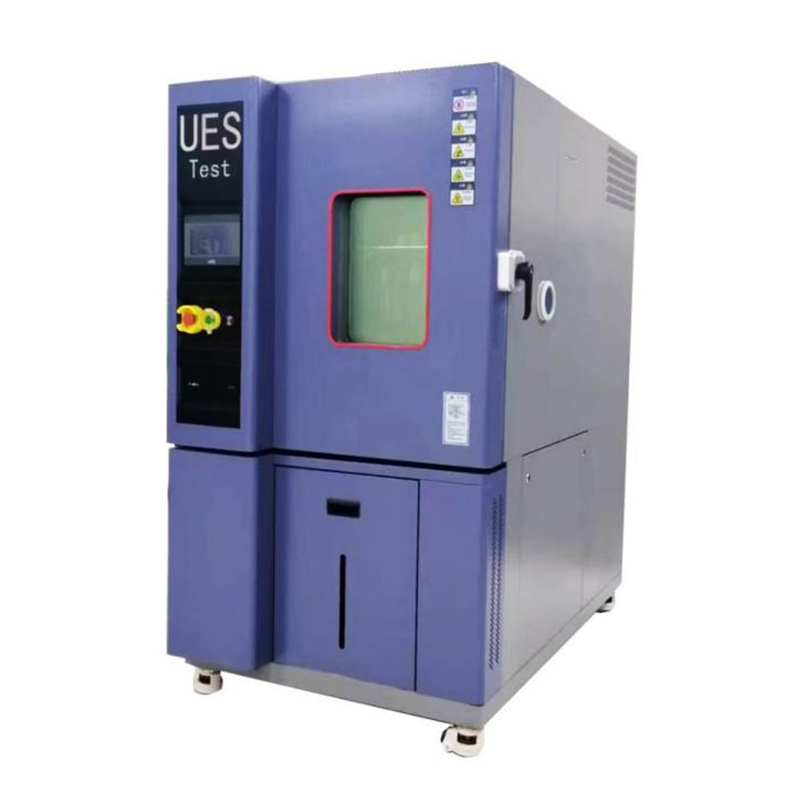

Rapid Temperature Change Test Chamber for Environmental Reliability Testing
Core Features
Rapid Temperature Transition: Supports adjustable change rates from 5°C/min to 20°C/min, enabling precise simulation of extreme thermal cycling.
Dual Cooling Options: Flexible air-cooled (A) or water-cooled (W) configurations to suit facility constraints and efficiency needs.
High-Performance Components: Equipped with Panasonic circulating fans featuring high-temperature-resistant bearings, ensuring stable airflow and durability under repeated thermal stress.
Robust Construction: Stainless steel interior with advanced insulation for minimal temperature deviation and long-term reliability.
Combining advanced engineering, precision control, and compliance with global standards, these chambers serve industries ranging from electronics to aerospace. Below is a detailed overview of four flagship products, derived from the uploaded content.
1. High and Low Temperature Test Chamber (UT Series)
Purpose: Provides stable high/low-temperature environments for R&D, production, and quality inspection of products like electronics, automotive parts, and military hardware.
Key Features:
Advanced Structure: Damping hinges for adjustable door angles; inner chamber made of coated mirror-finish stainless steel.
Precision Control: Dynamic PID and water vapor partial pressure control for ±0.5°C accuracy.
Reliable Components: Imported core electrical parts; Panasonic circulation fan with 200°C-resistant bearings.
Durability: Full-size stainless steel condensate tray prevents compressor corrosion.
Standards Met: GB/T 2423.2-2008 (High-Temperature Test), GB/T 2423.3-2006 (Constant Humidity Test), GJB150.3A-2009 (Military High-Temperature Test).
Models & Specifications:
Model
Temp Range
Volume
Working Dimensions (W×D×H/mm)
Overall Dimensions (W×D×H/mm)
UT-100-A
-70°C~180°C
100L
500×400×500
780×1400×1660
UT-150-A
-70°C~180°C
150L
500×500×600
780×1550×1760
UT-225-A
-70°C~180°C
225L
600×500×750
880×1500×1910
UT-408-A
-70°C~180°C
408L
800×600×850
1080×1600×2060
UT-612-A
-70°C~180°C
612L
850×800×900
1130×1800×2110
UT-800-A
-70°C~180°C
800L
1000×800×1000
1280×1800×2210
UT-1000-A
-70°C~180°C
1000L
1000×1000×1000
1280×2000×2210
2. High and Low Temperature Alternating Humidity and Heat Test Chamber (UTH Series)
Purpose: Extends the UT series with humidity control (10–98% RH) for testing products under combined thermal and moisture stress (e.g., rubber, plastics).
Enhanced Features:
Adds a unique leakage protection design for safer operation.
Includes a temperature-humidity performance diagram (graph showing operable ranges from -70°C to 150°C and 10–98% RH).
Standards Met: Same as UT series, plus GB/T 2423.4-2008 (Cyclic Humidity Test).
Models & Specifications:
Model
Temp Range
Humidity Range
Volume
Working Dimensions (W×D×H/mm)
Overall Dimensions (W×D×H/mm)
UTH-100-A
-70°C~180°C
10–98% RH
100L
500×400×500
780×1400×1660
UTH-150-A
-70°C~180°C
10–98% RH
150L
500×500×600
780×1550×1760
UTH-225-A
-70°C~180°C
10–98% RH
225L
600×500×750
880×1500×1910
UTH-408-A
-70°C~180°C
10–98% RH
408L
800×600×850
1080×1600×2060
UTH-612-A
-70°C~180°C
10–98% RH
612L
850×800×900
1130×1800×2110
UTH-800-A
-70°C~180°C
10–98% RH
800L
1000×800×1000
1280×1800×2210
UTH-1000-A
-70°C~180°C
10–98% RH
1000L
1000×1000×1000
1280×2000×2210
3. Rapid Temperature Change Test Chamber (UQT Series)
Purpose: Simulates fast thermal cycling (5–20°C/min) to validate product resilience against thermal shock (e.g., electronics, aviation components).
Key Features:
Rapid Transition Rates: Selectable 5/10/15/20°C/min (average/linear).
Dual Cooling Options: Air-cooled (A) or water-cooled (W) configurations.
Energy Efficiency: Green design with low power consumption.
Standards Met: GB/T 10592-2008 (Technical Conditions), GJB150.3A-2009 (Military High-Temperature Test).
Models & Specifications:
Model
Temp Range
Volume
Working Dimensions (W×D×H/mm)
Overall Dimensions (W×D×H/mm)
UQT-100-A/W
-70°C~180°C
100L
500×400×500
780×1600×1710
UQT-150-A/W
-70°C~180°C
150L
500×500×600
780×1700×1810
UQT-225-A/W
-70°C~180°C
225L
600×500×750
880×1700×1960
UQT-420-A/W
-70°C~180°C
420L
800×600×850
1080×1800×2110
UQT-612-A/W
-70°C~180°C
612L
850×800×900
1130×2000×2160
UQT-800-A/W
-70°C~180°C
800L
1000×800×1000
1280×2000×2260
UQT-1000-A/W
-70°C~180°C
1000L
1000×1000×1000
1280×2200×2260
4. Rapid Temperature Change and Humidity Test Chamber (UQTH Series)
Purpose: Combines rapid thermal cycling with humidity control for comprehensive testing of products like 3C electronics and automotive modules.
Unique Value:
Supports both temperature and humidity variations in a single chamber.
Meets stringent standards for cyclic humidity (GB/T 2423.4-2008).
Models & Specifications:
Model
Temp Range
Volume
Working Dimensions (W×D×H/mm)
Overall Dimensions (W×D×H/mm)
UQTH-100-A/W
-70°C~180°C
100L
500×400×500
780×1600×1710
UQTH-150-A/W
-70°C~180°C
150L
500×500×600
780×1700×1810
UQTH-225-A/W
-70°C~180°C
225L
600×500×750
880×1700×1960
UQTH-420-A/W
-70°C~180°C
420L
800×600×850
1080×1800×2110
UQTH-612-A/W
-70°C~180°C
612L
850×800×900
1130×2000×2160
UQTH-800-A/W
-70°C~180°C
800L
1000×800×1000
1280×2000×2260
UQTH-1000-A/W
-70°C~180°C
1000L
1000×1000×1000
1280×2200×2260
Applications & Customization
All chambers are used in electronics, automotive, military, aerospace, and communication industries. UES offers customizable dimensions (per client requirements) and supports multi-brand equipment repair (e.g., ESPEC, ACS).
