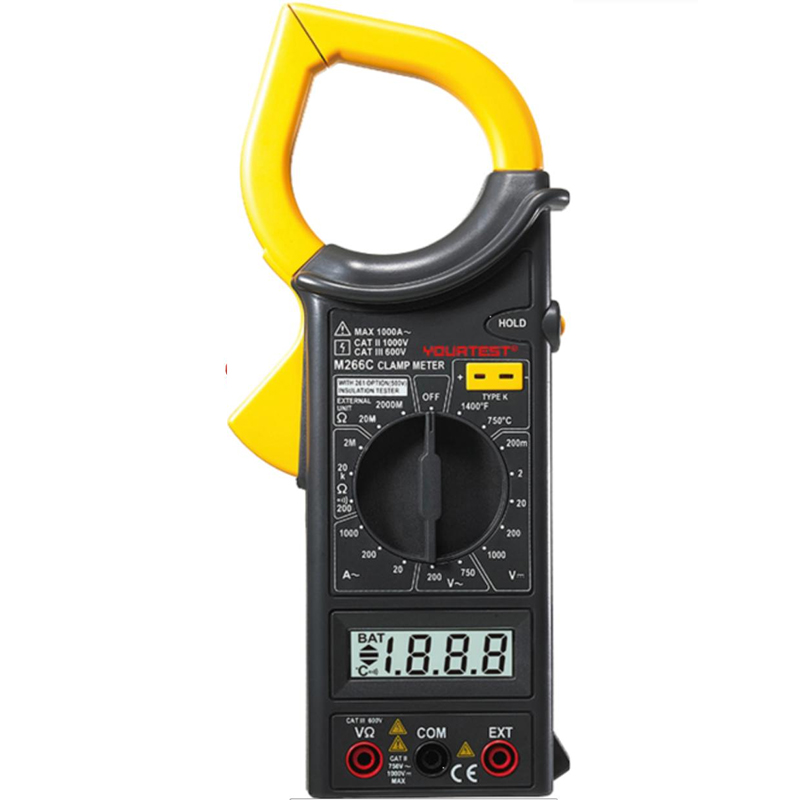

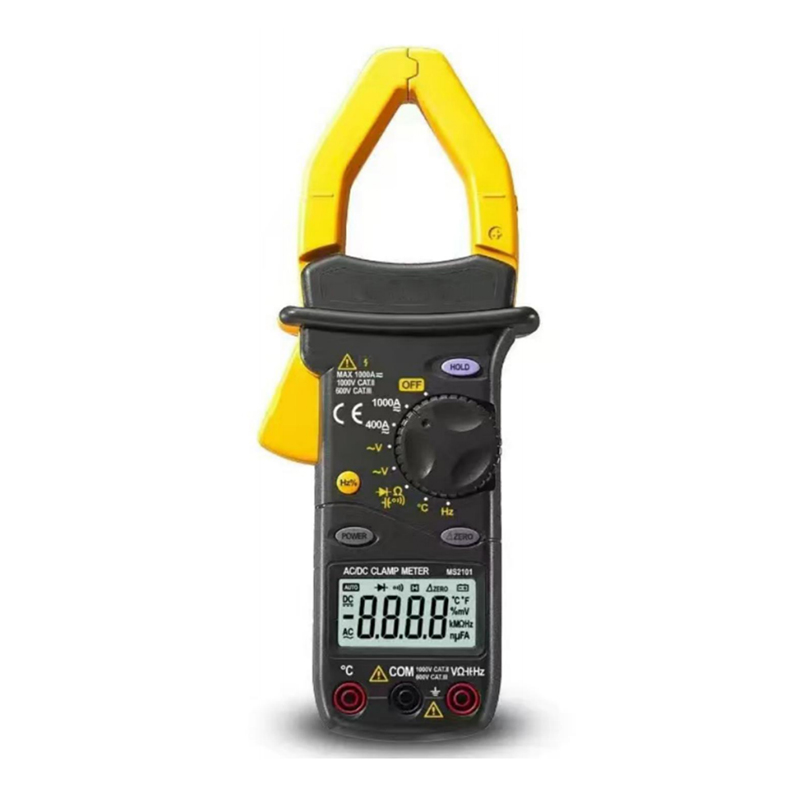

MS2001 & M266 Series AC Digital Clamp Meters
MS2001 & M266 series AC digital clamp meters deliver multi-function testing (V/A/R/F/T), high accuracy (±1%–±4% Rdg+Dgt), 2000/20000-count displays, data hold, backlight, diode/continuity tests. Compact (218–235mm), lightweight (272–330g), 9V battery-powered, with 42–50mm jaw diameters—ideal for electricians, technicians, and DIYers in electrical diagnostics.
Product Overview
The MS2001 & M266 Series AC Digital Clamp Meters are professional tools designed for precise electrical measurement across diverse applications. The MS2001 series (including MS2101 for AC/DC) focuses on AC systems, while the M266 series enhances versatility with broader DC voltage support. Both series integrate core functions: measuring AC/DC voltage (up to 1000V), AC current (20A–1000A), resistance (200Ω–40kΩ), frequency (0–10MHz), and temperature (-30℃–1000℃).
Key features include high-resolution displays (2000/20000 counts for clear readings), data hold for stable measurements, backlit LCD for low-light use, and built-in tests (diode check, continuity, transistor hFE). The MS2001 series adds 3-terminal transistor testing, while M266 emphasizes compact portability.
With 9V battery power, lightweight designs (272–330g), and compact dimensions (218×90×44mm to 235×95×44mm), these meters are field-ready. Jaw diameters (42–50mm) accommodate thick wires, and packaging (10–20 units/carton) suits bulk deployment. Ideal for circuit troubleshooting, appliance maintenance, and industrial inspections, they combine accuracy, durability, and user-friendly operation for professionals and DIY enthusiasts alike.
Simplified Merged Table
Category | MS2001 Series (AC) | MS2101 (AC/DC) | M266 Series (AC) |
|---|---|---|---|
Technical Specs | |||
DC Voltage | — | 0.5V–600V, ±0.8% Rdg+5 Dgt | 1000V, ±1.5% Rdg+Dgt |
AC Voltage | 20V–1000V, ±1.2% Rdg+5 Dgt | 0.5V–600V, ±1.2% Rdg+5 Dgt | 750V, ±1.5% Rdg+Dgt |
AC Current | 20A/200A/1000A, ±3.0% Rdg+10 Dgt | 400A/1000A, ±3.0% Rdg+10 Dgt | 20A/200A/1000A, ±1% Rdg+Dgt |
Resistance | 200Ω/2000Ω, ±2.0% Rdg+3 Dgt | 400Ω/40kΩ, ±2.0% Rdg+3 Dgt | 200Ω/2000Ω, ±1% Rdg+Dgt |
Capacitance | 4nF–10μF, ±4% Rdg+10 Dgt | 4nF–10μF, ±4% Rdg+10 Dgt | — |
Frequency | 0–10MHz, ±2.0% Rdg+5 Dgt | 20Hz–200kHz, ±1.0% Rdg+5 Dgt | 0–100Hz, ±1% Rdg+Dgt |
Temperature | -30℃–1000℃, ±2% Rdg+3 Dgt | -30℃–1000℃, ±2% Rdg+3 Dgt | -30℃–750℃, ±1% Rdg+Dgt |
Features | 20000-count, data hold, backlight, diode/continuity/test, transistor test | 4000-count, data hold, backlight, diode/continuity/test | 2000-count, data hold, backlight, diode/continuity/test |
Basic Parameters | |||
Power Supply | 9V battery (6F22) | 9V battery (6F22) | 9V battery (6F22) |
Weight | ~330g | ~330g | ~272g |
Dimensions | 218×90×44mm (MS2001); 248×90×44mm (MS2101) | 248×90×44mm | 235×95×44mm |
Jaw Diameter | ~42mm | ~42mm | ~50mm |
Packaging | 10 units/carton (33×32×28cm) | 10 units/carton (33×32×28cm) | 20 units/carton (53×34×27.5cm) |
