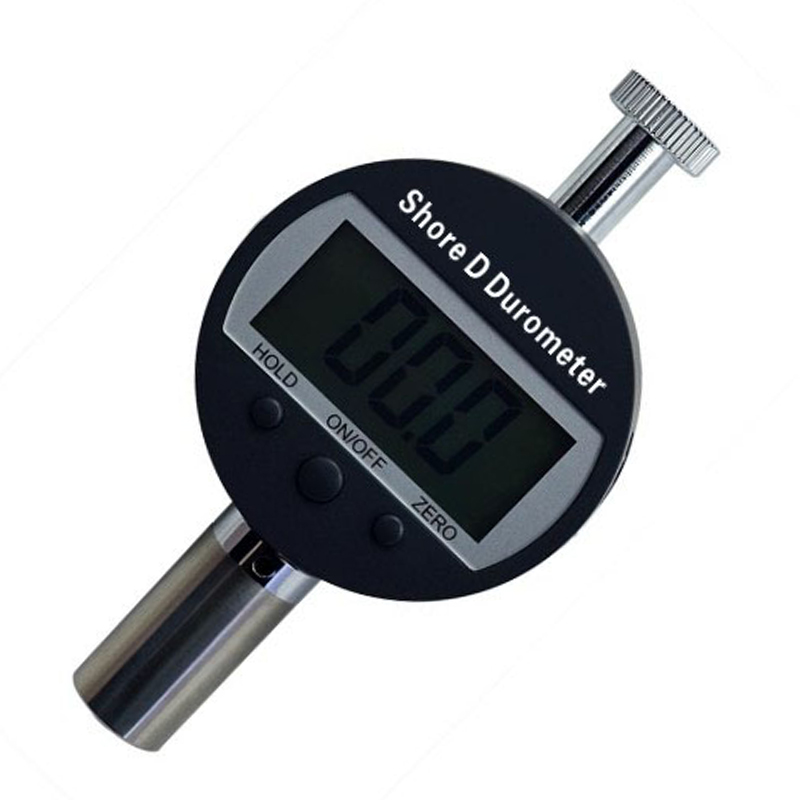

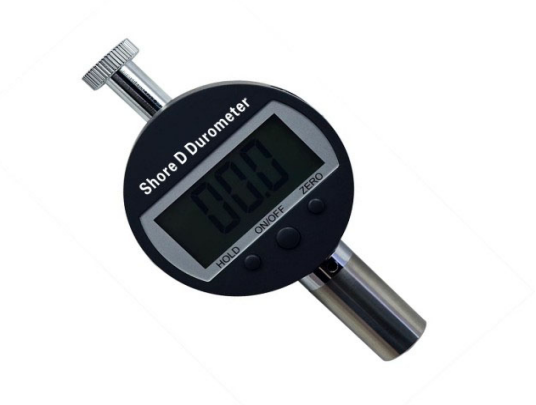

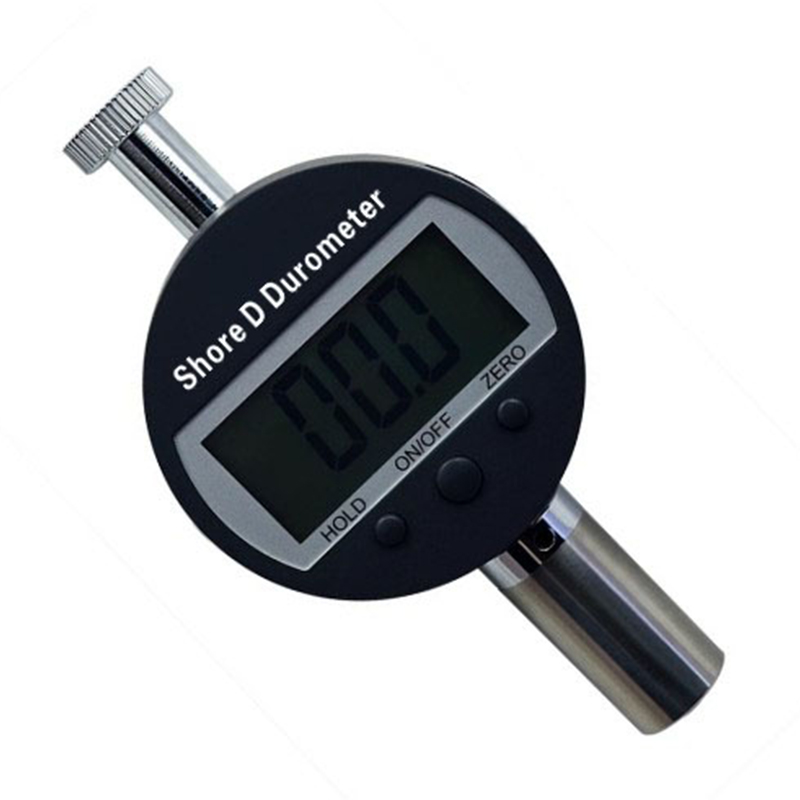

LX-DS Digital Shore Hardness Tester
Brand JUHUI
Product origin Shanghai
Delivery time In Stock
Supply capacity Unlimited Supply
Digital LCD screen provides fast and accurate data display.
Durable metal construction ensures long-term precision and stability.
Designed for testing hard rubber, resin, and acrylic materials.
Product Description
The LX-DS Digital Shore Hardness Tester is a high-precision instrument designed for measuring the hardness of hard rubber, resin, acrylic, thermoplastic, fiber, and similar high-hardness materials. It is manufactured in accordance with ISO868 and ISO7619 international standards, ensuring accurate and reliable test results. Equipped with a digital LCD display, it provides clear, fast, and precise readings, eliminating parallax and manual reading errors. Its compact and lightweight structure allows both handheld and stand-mounted use for greater testing flexibility. With durable components and stable performance, the LX-DS offers superior reliability for laboratory, research, and industrial quality control applications.
Product Advantages
Specially designed for high-hardness materials such as hard rubber, resin, acrylic, thermoplastics, and fiber composites.
Digital display with 0.5° resolution ensures accurate and fast readings.
Compact and lightweight design, easy to carry and operate.
Can be handheld or mounted on an optional fixed-load test stand for improved stability.
Built according to ISO868 and ISO7619 international standards, ensuring global testing compatibility.
Strong metal frame and durable probe design guarantee long service life and consistent accuracy.
Application Range
Suitable for testing the hardness of hard rubber, thermoplastic, acrylic, and similar high-hardness materials in laboratories, factories, and research environments.
Technical Parameters
| Parameter | Specification |
|---|---|
| Measuring Range | 0–100 HD |
| Measurement Error | Within ±1° (10–90° range) |
| Resolution | 0.5° |
| Indenter Stroke | 2.5 mm |
| Indenter Pressure | 0–44.5 N |
| Indenter Tip Size | SR 0.1 mm |
| Product Dimensions | 115 × 60 × 25 mm |
| Weight | Approx. 160 g |
