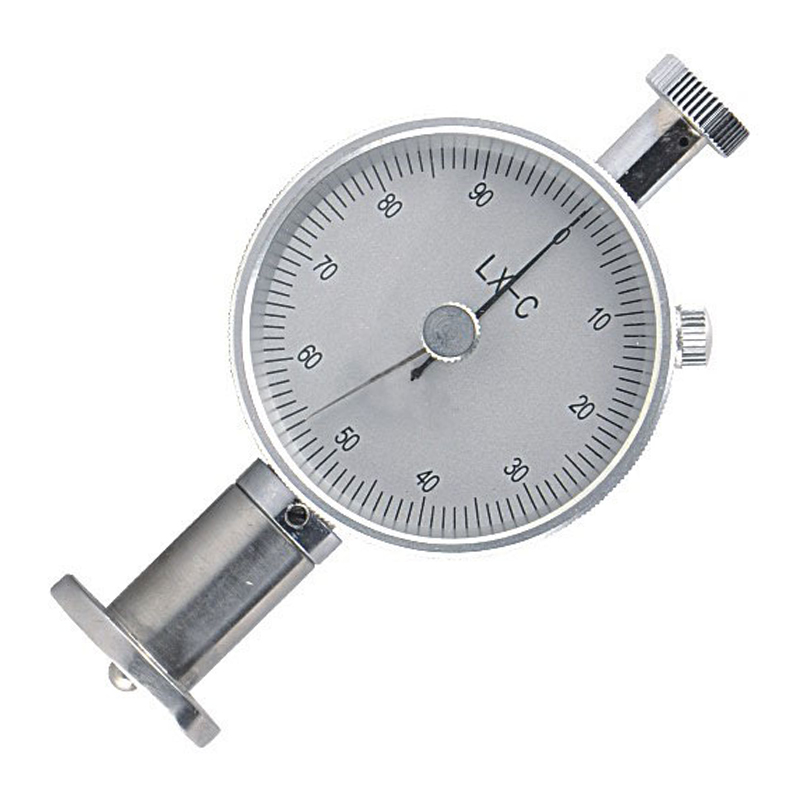

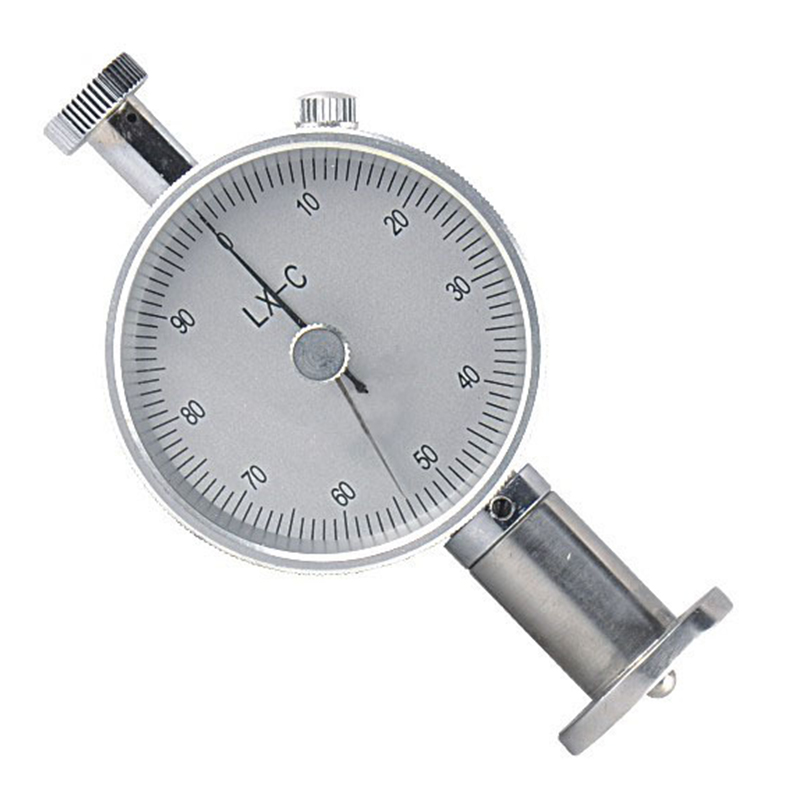

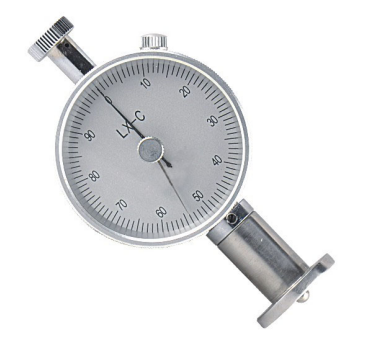

LX-C-2 Shore Hardness Tester

Product Description

The LX-C-2 Shore Hardness Tester is a precision instrument developed for testing the hardness of soft, foamed, or microcellular materials made with foaming agents, with a compressive stress above 0.5 kg/cm² at 50% compression. Manufactured in accordance with ISO868 and ISO7619 international standards, the LX-C-2 offers reliable, repeatable, and accurate measurement results. It features a compact structure, lightweight body, and clear analog dial for intuitive readings. The tester can be used for handheld testing or mounted on a dedicated load-bearing stand for improved accuracy and repeatability. With its simple operation and durable construction, it is ideal for laboratories, R&D institutions, and production quality control.

Product Advantages

1. Designed for testing microcellular materials and other soft materials with similar hardness characteristics.

2. Direct pointer reading eliminates viewing angle errors and provides accurate results.

3. Simple structure, convenient to use, compact, and lightweight for easy portability.

4. Can be handheld or installed on an optional fixed load test stand for stable and precise measurement.

5. Manufactured according to ISO868 and ISO7619 international standards to ensure reliable and consistent performance.

6. Durable mechanical design for long-term use with clear dial readings.

Application Range

Ideal for testing foamed plastic, sponge rubber, microcellular materials, and other soft materials with moderate hardness.

Technical Parameters
