K6206-V20 High-Precision Dual-Channel Programmable DC Power Supply
The K6206-V20 is a compact, dual-channel DC programmable power supply delivering 20V/5A per channel and 100W single-port power. It achieves µA-level precision for weak current measurement, supports Ethernet remote control, and offers flexible configurations (independent dual-channel or combined modes). Weighing only 2.8kg, it excels in testing consumer electronics, fast-charging devices, and micro-power consumption analysis. Its small size outperforms comparable imported products, making it ideal for R&D and quality assurance.
ntroduction to the K6206-V20
The K6206-V20 High-Precision Dual-Channel Programmable DC Power Supply, developed by WELZEK, represents a breakthrough in DC power technology, combining high, compact design, and intelligent control. Designed for testing various electronic products, it addresses the growing demand for precise power consumption measurement in industries like consumer electronics, automotive, and IoT. With a volume and weight significantly smaller than similar imported products, the K6206-V20 offers portability without compromising performance, making it a versatile tool for laboratories and production lines.
Core Technological Innovations
The K6206-V20 integrates several key advancements:

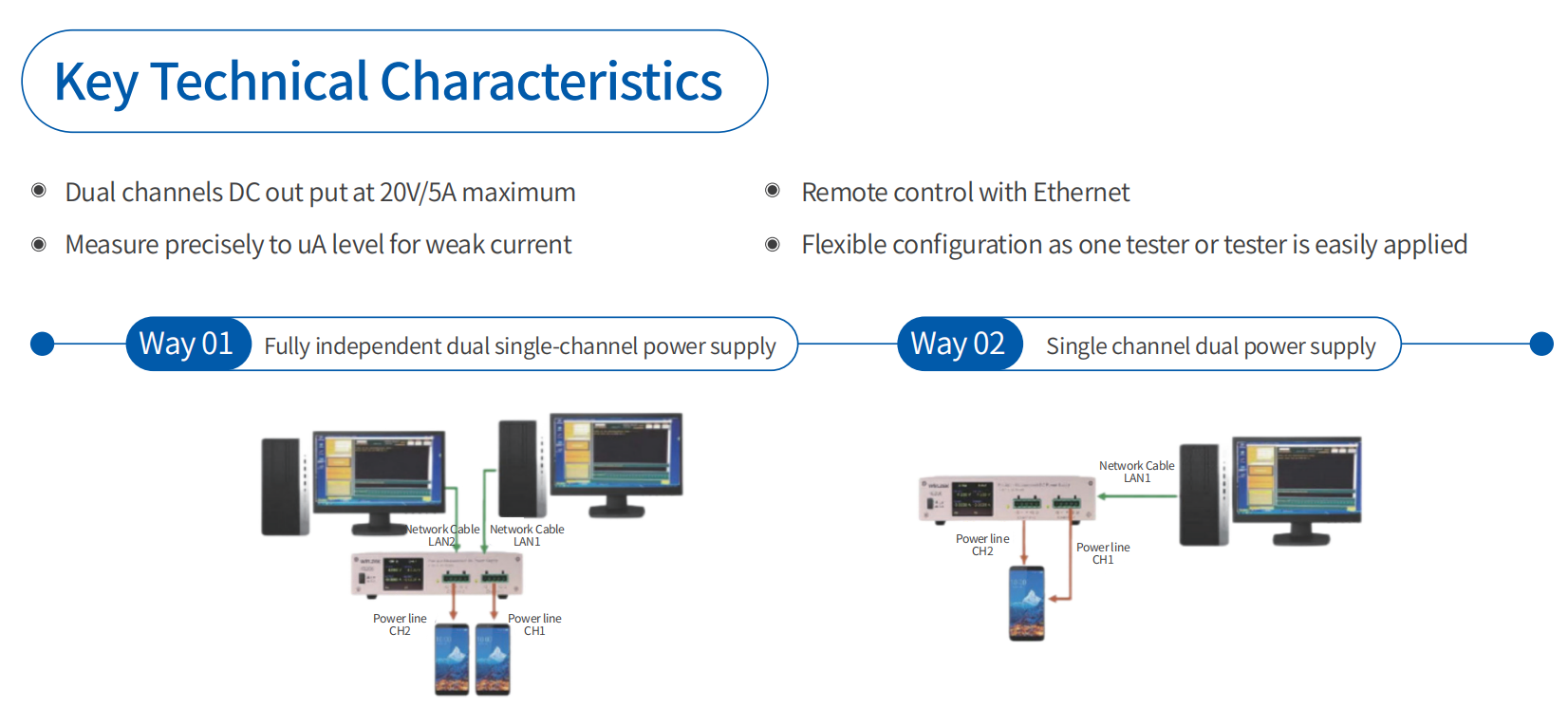

Dual-Channel Flexibility: Each channel supports 0–20V voltage and 0–5A current, with a maximum power of 100W per channel. When both channels are used, the total power reaches 130W, allowing parallel or series configurations for diverse testing scenarios. This flexibility enables simulations of complex power conditions, such as battery charging cycles or multi-voltage system validations.
Microampere-Level Precision: The power supply achieves exceptional current measurement accuracy, with resolutions down to 100nA (on the 20mA range) and voltage resolution of 1mV. This µ capability is critical for testing low-power devices like wearables, sensors, and IoT modules, where minor power fluctuations can impact performance.

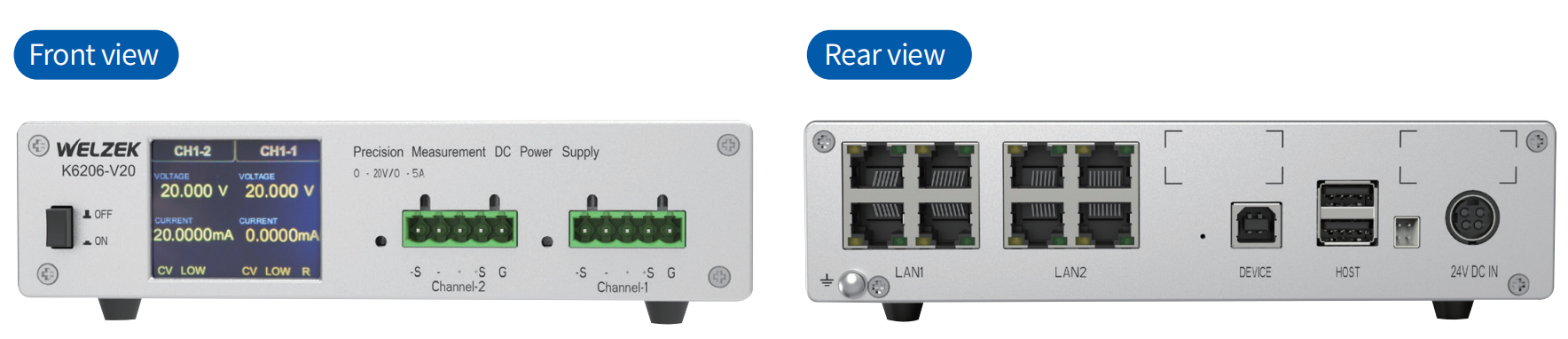

Ethernet Remote Control: Equipped with dual LAN ports (10/100 Ethernet) and USB interfaces (Type A and Type E), the K6206-V20 supports remote operation via network commands. This facilitates automated testing systems, enabling unattended long-term reliability checks or integration into existing production workflows.
Variable Output Impedance: A unique feature allows adjustable output impedance (0–10Ω with 0.001Ω resolution), mimicking real-world source behaviors for accurate load regulation tests. This is particularly useful for validating power adapters or battery-powered devices under dynamic conditions.
Technical Specifications
The following table summarizes the K6206-V20’s key parameters, based on documented standards (measured at 25°C ±5°C after 1-hour warm-up):
Parameter | Specification |
|---|---|
Number of Outputs | 2 channels |
LAN Ports 2× (10/100 Ethernet) | |
USB Interfaces | 1× Type A, 1× Type E |
DC Output Ratings | |
– Voltage Range | 0–20V |
– Current Range | 0–5A (at 0–20V) |
– Max Power (Per Channel) | 100W |
– Total Max Power (CH1+CH2) | 130W |
Voltage Programming | |
– Accuracy | ±(0.05% + 5mV) |
– Resolution | 1mV |
Voltage Measurement | |
– Accuracy | ±(0.05% + 3mV) |
– Resolution | 1mV |
Current Programming | |
– Accuracy (5A Range) | ±(0.2% + 5mA) |
– Resolution (5A Range) | 1mA |
Current Measurement | |
– Accuracy (5A Range) | ±(0.2% + 500μA) |
– Accuracy (20mA Range) | ±(0% + 2.5μA) |
– Resolution (5A Range) | 100μA |
– Resolution (20mA Range) | 100nA |
Variable Impedance | |
– Range | 0–10Ω |
– Resolution | 0.001Ω |
Dimensions & Weight | |
– Size (W×H×D) | 180×44.45×252mm |
– Weight | 2.8kg |
Applications Across Industries
The K6206-V20 is engineered for broad applicability:
Consumer Electronics Testing: Validates power consumption of smartphones, fast-chargers, and portable devices. For example, it measures standby currents in µA ranges to ensure compliance with energy efficiency standards.
Automotive and IoT: Supports durability checks for sensors and embedded systems, where precise voltage/current control mimics real operating conditions.
R&D and Education: Used in laboratories for prototyping power circuits or teaching electrical engineering principles, thanks to its programmable interfaces and safety features.
**Industrial Quality Integrates into production lines for batch testing of PCBs or power modules, with Ethernet enabling data logging and remote diagnostics.
Advantages Over Conventional Power Supplies
Compact Design: At 2.8kg and slim dimensions, it saves bench space compared to bulkier models, without sacrificing power (100W per channel).
High Accuracy: Voltage and current accuracies within 0.05%–0.2% ensure reliable data for critical applications, such as battery life estimation or component validation.
User-Friendly Operation: The intuitive interface, combined with remote control options, reduces setup time. Configurations can be saved and recalled for repetitive tests.
Cost-Effectiveness: As a domestically developed product, it offers performance comparable to premium imports at a competitive price, accelerating adoption in cost-sensitive markets.
In summary, the K6206-V20 blends precision, versatility, and smart features to meet modern electronic testing demands, making it a go-to solution for engineers and researchers worldwide.
