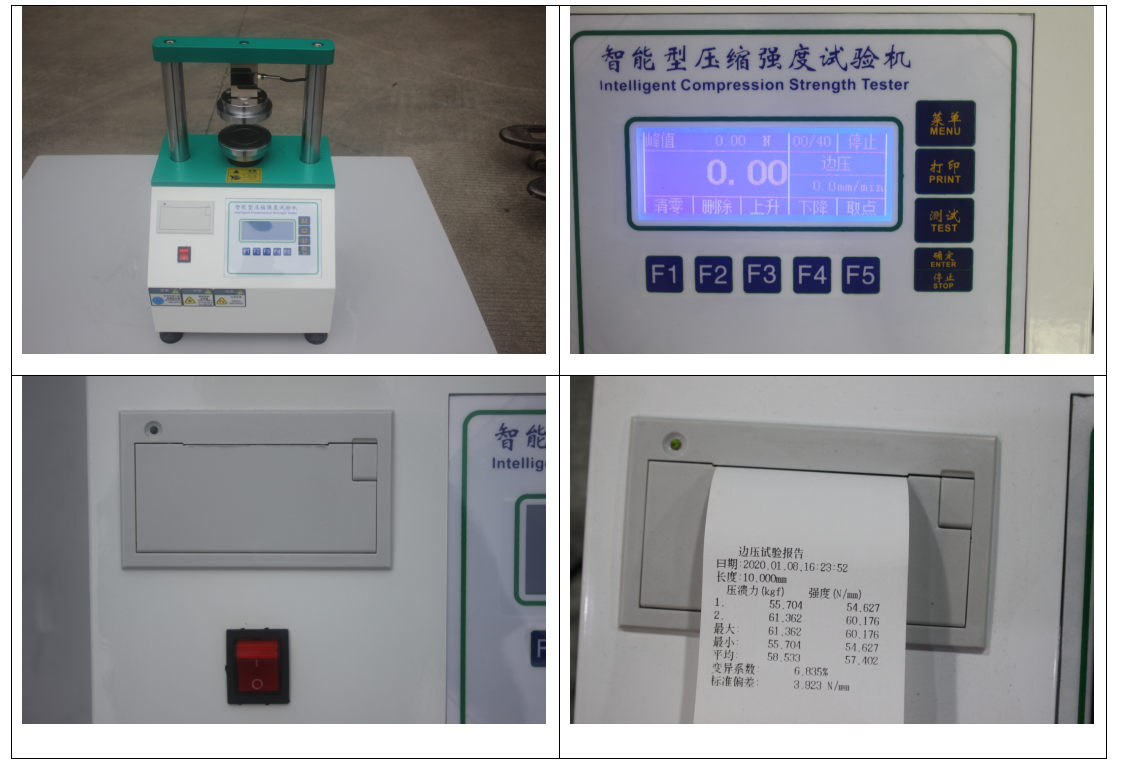

Edge Crush Ring Crush Testing Machine
This multi-functional testing equipment evaluates corrugated paper and board strength properties including ring crush (RCT), edge crush (ECT), flat crush (FCT), and peel adhesion (PAT). Featuring automatic calculation and data storage, it offers three test speeds with ±1% accuracy up to 2KN capacity. The system includes stack compression testing, auto-return function, and Chinese LCD interface, supporting paper manufacturers in quality control and cost optimization through precise strength measurement and data analysis.
Product Details
Technical Overview
The Edge Crush Ring Crush Testing Machine represents advanced paper testing technology designed for comprehensive quality assessment in paper manufacturing industries. This precision instrument performs multiple strength tests essential for evaluating packaging materials, particularly corrugated boards and paper products. With its robust construction and intelligent control system, it serves as a complete solution for paper mills and packaging manufacturers requiring reliable quality verification.
Key Specifications
The machine operates within a measuring range of ≤2KN with high precision of ±1% accuracy and 1N resolution. It offers flexible unit selection including N, kN, kgf, gf, and lbf for force measurement, and Pa, kPa, MPa, kgf/cm², lbf/in² for strength calculation standard test speed is maintained at 12.5 mm/min, ensuring consistent testing conditions. The equipment features Φ110mm pressure plates with 60mm spacing between upper and lower plates, powered by 220V/1.5A electrical supply.
Testing Capabilities
Equipped with specialized fixtures and accessories, the machine conducts four crucial paper strength tests:
Ring Crush Test (RCT) using center plate and dedicated sampler
Edge Crush Test (ECT) with specific sampling tools and guide blocks
Flat Crush Test (FCT) for corrugated board evaluation
Peel Adhesion Test (PAT) using dedicated testing frame
Operational Advantages
The system automatically calculates key strength parameters, eliminating manual computation and reducing human error. Its built-in stack compression testing function allows direct setting of force and time parameters with automatic shutdown upon completion. The machine features auto-return function and intelligent collapse force detection with automatic data storage. The user-friendly Chinese LCD interface offers three programmable speeds and multiple unit options, while maintaining records 20 test results for comparative analysis.
Application Scenarios
Ideal for paper manufacturing plants, packaging facilities, and quality control laboratories, the tester helps optimize production costs and enhance product quality through accurate strength verification. It serves particularly well in corrugated box manufacturing, paperboard production, and packaging material development, ensuring compliance with industry standards and customer specifications.
Quality Assurance Features
The machine's precision engineering ensures reliable performance in industrial environments. The automatic data recording system maintains test history for quality tracking, while the programmable parameters enable standardized testing procedures across production batches. The robust construction and consistent 12.5 mm/min test speed guarantee reproducible results, making it an essential tool for paper industry professionals seeking to maintain competitive quality standards.
