A hardness testing lab may need more than a hardness tester. For Vickers, Micro Vickers, case depth testing, weld hardness testing, coating hardness testing, and metallographic inspection, buyers should prepare cutting machines, mounting equipment, grinding and polishing machines, microscopes, consumables, sample holders, calibration blocks, and report software as a complete lab configuration.
Cutting
Low-damage cutting prepares gears, shafts, welds, coatings, and heat-treated samples.
Mounting
Mounting supports small parts, thin layers, irregular samples, and cross-sections.
Grinding & Polishing
Flat, scratch-controlled surfaces improve Vickers and Micro Vickers measurement reliability.
Microscope & Reports
Microscopes and software help verify test locations, layers, images, curves, and reports.
Why Hardness Testing Labs Need Metallographic Sample Preparation Equipment
Some hardness testing applications can be performed directly on a clean metal surface. However, many industrial QC labs need prepared cross-sections before reliable testing can be done. This is especially true for Micro Vickers testing, case depth testing, weld hardness testing, coating hardness testing, nitrided layers, carburized gears, induction-hardened shafts, thin layers, and small precision components.
If the sample is not prepared correctly, the hardness result may be wrong even if the hardness tester itself is accurate. Cutting heat can change local hardness. Poor mounting can cause edge rounding. Rough grinding can leave scratches. Poor polishing can make Vickers indentation corners unclear. These problems lead to unstable values, repeated testing, customer disputes, and inaccurate case depth results.
A complete hardness testing lab should therefore consider the full workflow: cutting, mounting, grinding, polishing, cleaning, microscope inspection, hardness testing, calibration, image measurement, and report export. Buyers should not only ask for the hardness tester price; they should also confirm the sample preparation equipment needed for their real testing applications.
1. Metallographic Cutting Machine
The first step in many hardness testing workflows is cutting the sample through the required inspection area. For gears, shafts, welds, coatings, fasteners, molds, and heat-treated parts, the cut location directly affects whether the final test result represents the correct functional area.
A metallographic cutting machine should provide controlled cutting, stable sample clamping, suitable cutting wheel selection, and cooling to reduce heat damage. If cutting creates thermal damage, deformation, or cracks, the hardness profile may not represent the real part condition.
| Sample Type | Cutting Purpose | Buyer Checkpoint |
|---|---|---|
| Carburized gears | Cut through tooth area for case depth testing | Confirm cutting capacity, clamping method, and coolant system |
| Nitrided shafts | Prepare cross-section for thin layer hardness profile | Avoid overheating and edge damage |
| Welded parts | Cut weld metal, HAZ, and base metal cross-section | Confirm test path and weld section orientation before cutting |
| Small fasteners and coated parts | Prepare small cross-sections without losing the layer | Use suitable cutting wheel and stable holding fixture |

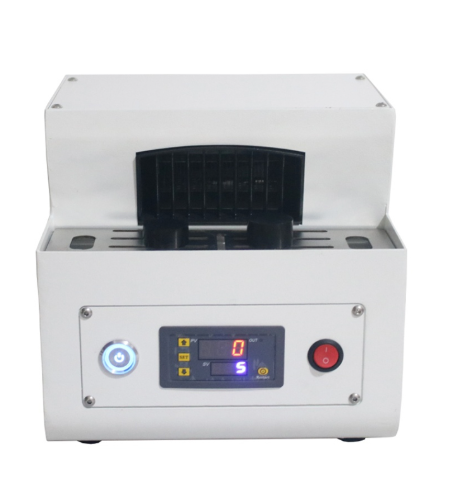

2. Hot Mounting Press Or Cold Mounting Tools
Mounting is used to support small, thin, irregular, or delicate samples during grinding, polishing, and hardness testing. For case depth, coating hardness, nitrided layers, and small parts, mounting helps protect the edge and keep the sample stable.
Hot mounting is suitable for many routine metallographic samples and provides stable support. Cold mounting is useful for samples that may be sensitive to heat or pressure. Buyers should choose mounting equipment based on sample type, throughput, edge retention requirements, and lab workflow.
Mounting equipment selection should consider:
Sample size, shape, and thickness.
Whether the sample is heat-sensitive or pressure-sensitive.
Edge retention requirement for thin layers or coatings.
Daily sample preparation volume.
Mounting diameter required by the hardness tester stage or sample holder.
Whether hot mounting, cold mounting, or both are needed.

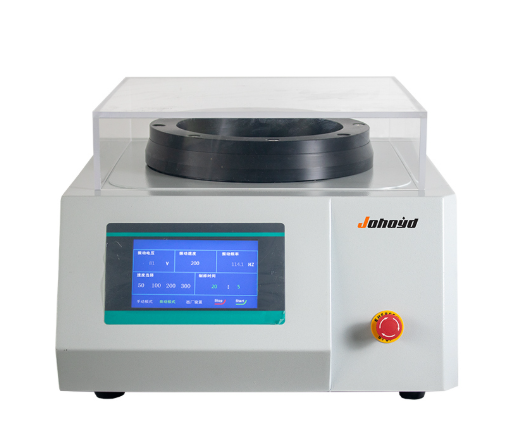

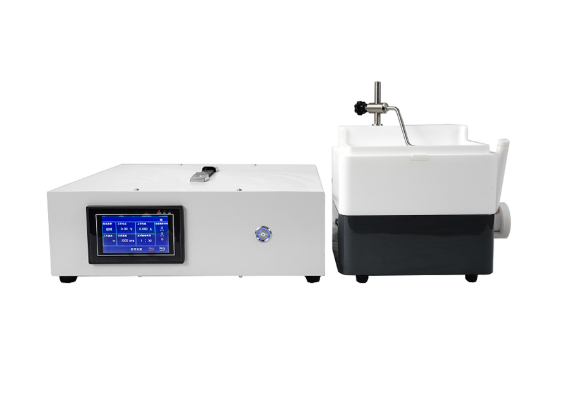

3. Grinding And Polishing Machine
Grinding and polishing are critical for Vickers and Micro Vickers hardness testing. The indentation corners must be clear enough for accurate measurement. If the sample surface has deep scratches, deformation, pull-out, or poor flatness, the software or operator may not measure the indentation correctly.
A grinding and polishing machine should match the lab’s sample volume and required finish quality. For routine QC, a manual or semi-automatic machine may be enough. For high-volume labs or labs requiring consistent preparation, automatic pressure control and multi-sample holders can improve repeatability.
| Equipment Type | Suitable For | Main Benefit |
|---|---|---|
| Manual grinding and polishing machine | Small labs and low-volume sample preparation | Flexible operation and lower initial cost |
| Semi-automatic polishing machine | Daily QC labs with repeated samples | Improves consistency and reduces operator fatigue |
| Automatic grinding and polishing system | High-volume industrial labs and repeatable preparation | Better process control and sample-to-sample consistency |
| Multi-sample holder system | Labs preparing several mounted samples together | Improves efficiency for batch hardness testing |
4. Metallurgical Microscope
A metallurgical microscope helps the lab check whether the prepared surface is suitable before hardness testing. It can also help identify case depth zones, weld metal, heat-affected zone, base metal, coating layers, nitrided layers, and microstructural features.
For advanced hardness testing labs, a microscope is especially useful when test points must be placed along a specific path. It helps confirm whether the Micro Vickers indentation line is correctly positioned from the surface toward the core or across a weld section.
Microscope functions to confirm:
Magnification range suitable for metal samples.
Clear observation of polished and etched surfaces.
Ability to inspect coating, nitrided layer, weld zone, and case depth path.
Camera option for image capture if required.
Compatibility with report documentation.
Lighting quality and objective lens configuration.
5. Consumables For Cutting, Mounting, Grinding And Polishing
A complete metallographic sample preparation lab also needs consumables. Without the right consumables, even good machines cannot produce reliable samples. Buyers should include cutting wheels, mounting materials, grinding papers, polishing cloths, diamond suspensions, alumina suspensions, cleaning supplies, and sample labels in the purchasing plan.
Consumable selection depends on material type and testing purpose. Hardened steel, aluminum alloy, copper alloy, coatings, ceramics, and soft metals may require different preparation steps and consumables.
| Consumable Type | Use | Buyer Checkpoint |
|---|---|---|
| Cutting wheels | Sectioning different materials | Select by material hardness, size, and damage control requirement |
| Mounting resin | Supporting samples and protecting edges | Choose hot or cold mounting according to sample condition |
| Grinding papers | Removing cutting marks and flattening surface | Prepare several grit levels for step-by-step grinding |
| Polishing cloth and suspension | Final polishing for clear indentation and microstructure | Match polishing method to steel, aluminum, copper alloy, or coating samples |
6. Hardness Tester, Calibration Blocks And Report Software
Sample preparation equipment should be connected to the final hardness testing workflow. After cutting, mounting, grinding, and polishing, the lab may use Rockwell, Brinell, Vickers, or Micro Vickers testing depending on the application. For case depth, weld paths, coatings, and small areas, Micro Vickers testing is often required.
Calibration blocks, indenters, fixtures, XY stages, cameras, and report software should be included in the complete lab plan. A well-prepared sample still needs a properly verified hardness tester and clear report workflow.
Hardness testing configuration should include:
Rockwell, Brinell, Vickers, or Micro Vickers tester according to application.
Calibration blocks close to the working hardness range.
Required indenters and spare indenters.
Sample holders, anvils, fixtures, or XY stage.
Vision measurement software for Vickers, Micro Vickers, or Brinell if required.
PDF or Excel report export for customer documentation.
Training, manuals, spare parts, and technical support.
Recommended Equipment List By Lab Type
Different hardness testing labs need different levels of sample preparation equipment. A basic lab may only need simple cutting and polishing. A heat treatment or case depth lab needs a more complete configuration.
| Lab Type | Recommended Preparation Equipment | Typical Testing Use |
|---|---|---|
| Basic metal QC lab | Manual cutting, basic grinding and polishing tools | Routine hardness checks and simple sample preparation |
| Heat treatment lab | Cutting machine, mounting press, grinding-polishing machine, microscope | Carburized, nitrided, induction-hardened samples and case depth testing |
| Weld inspection lab | Cutting, mounting, polishing, microscope, Vickers/Micro Vickers tester | Weld metal, HAZ, and base metal hardness path testing |
| Advanced industrial QC lab | Automatic cutting, hot/cold mounting, automatic grinding-polishing, microscope, software | High-volume preparation, customer reports, case depth curves, coating analysis |
Key Questions Before Requesting A Quotation
To receive a suitable equipment recommendation, buyers should send sample and testing details before asking for a price. This helps the supplier recommend the right configuration instead of quoting incomplete equipment.
What materials will be prepared: steel, cast iron, aluminum, copper alloy, coating, weld, or tool steel?
What samples need preparation: gears, shafts, fasteners, welds, coatings, molds, or small parts?
Do you need surface hardness, cross-section hardness, case depth, or weld hardness testing?
What is the maximum sample size and hardness?
How many samples need to be prepared per day?
Do you need hot mounting, cold mounting, or both?
Do you need manual, semi-automatic, or automatic grinding and polishing?
Do you already have a hardness tester, microscope, or report software?
Do customers require indentation images, hardness profile curves, or metallographic images?
Do you need consumables included in the first quotation?
Conclusion: Build The Sample Preparation Workflow Before Buying Only One Machine
A complete hardness testing lab should not only focus on the hardness tester. For Vickers, Micro Vickers, case depth, coating hardness, weld hardness, and metallographic inspection, sample preparation quality directly affects final test accuracy.
Buyers should consider metallographic cutting machine, mounting press, grinding and polishing machine, microscope, consumables, sample holders, calibration blocks, hardness tester, and report software as one complete workflow. This prevents missing equipment and reduces unreliable hardness results.
If your lab is building or upgrading a hardness testing and metallographic sample preparation workflow, send your sample type, material, testing method, daily volume, and report needs before requesting a quotation. A complete configuration can help improve testing accuracy, preparation consistency, and customer approval.
FAQ
Why does a hardness testing lab need metallographic sample preparation equipment?
Vickers, Micro Vickers, case depth, weld hardness, coating hardness, and cross-section testing require flat, polished, and properly prepared samples for reliable results.
What equipment is needed for Micro Vickers case depth testing?
A typical setup includes cutting machine, mounting system, grinding and polishing machine, metallurgical microscope, Micro Vickers tester, XY stage, calibration blocks, and profile software.
Is polishing necessary before Vickers hardness testing?
Yes, in most Vickers and Micro Vickers applications, the sample surface should be polished so indentation corners can be measured clearly.
Should consumables be included in the first quotation?
Yes. Cutting wheels, mounting resin, grinding papers, polishing cloths, polishing suspension, and cleaning supplies help the lab start testing after installation.
Need A Complete Metallographic Sample Preparation Setup?
Send your sample type, material, hardness testing method, daily sample volume, case depth requirement, and report needs. We can help recommend metallographic cutting machines, mounting presses, grinding and polishing machines, microscopes, consumables, hardness testers, calibration blocks, and complete QC lab configurations.
